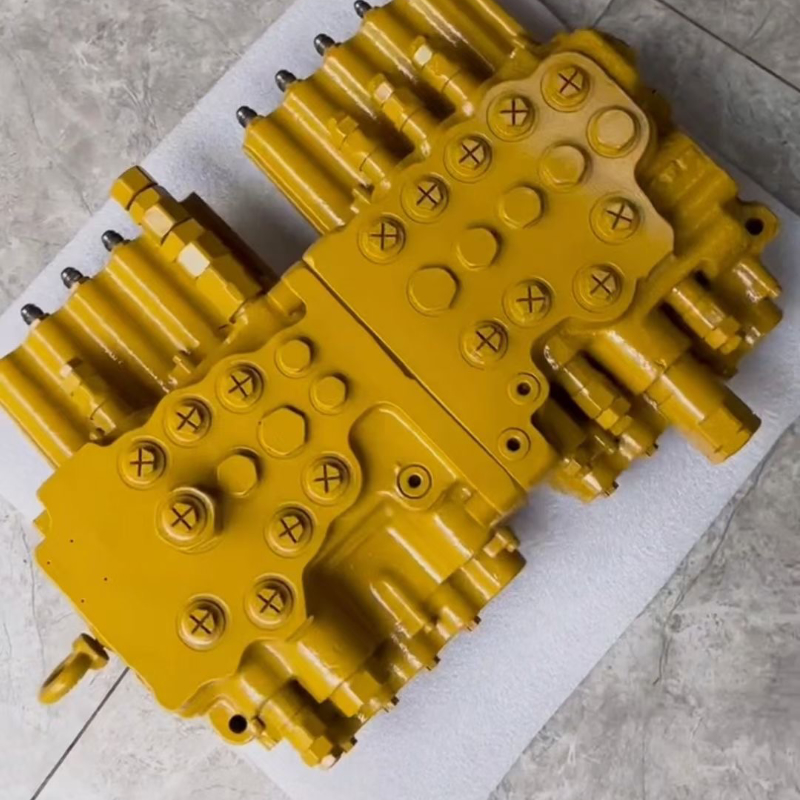

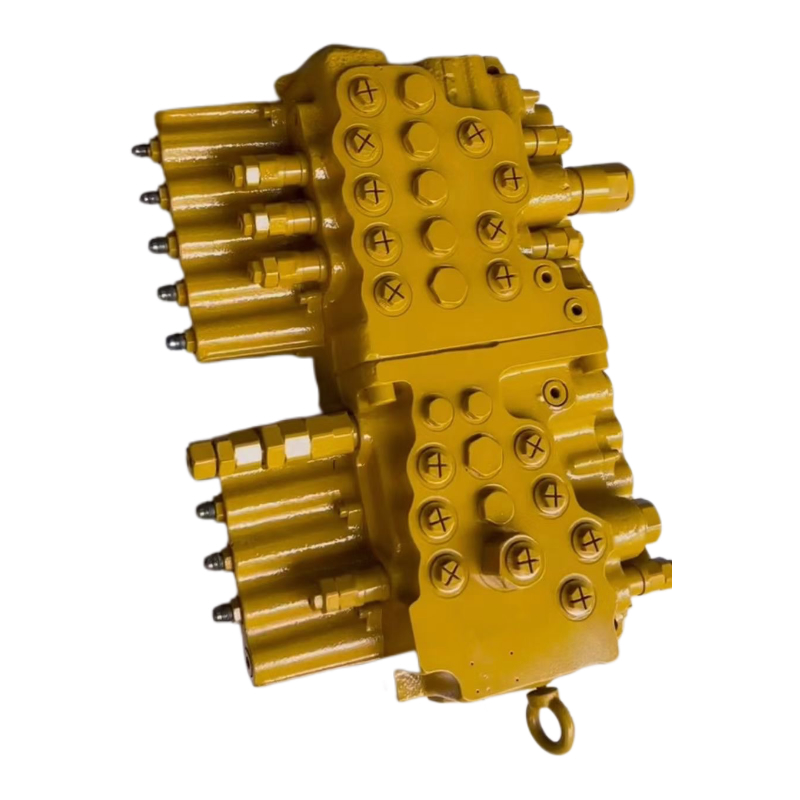

CAT 306 / 307 / 308C Main Control Valve – China Remanufactured (269-5956)

1. Key Features & Benefits

• Professionally remanufactured to Caterpillar OEM specifications – This main control valve (OEM 269-5956, also interchangeable with 297-8589 and 298-2877) has been fully disassembled, cleaned, crack‑inspected, and rebuilt to meet Caterpillar‘s original equipment specifications. Every critical component – spools, sleeves, springs, seals, O‑rings, and relief valves – is either renewed or replaced with new, high‑quality parts. The result is restored hydraulic performance at a fraction of the cost of a new genuine valve.

• The hydraulic “brain” of your CAT mini excavator – The main control valve is the central component that directs high‑pressure oil from the main pump to the boom, arm, bucket, swing, and travel motors based on the operator‘s joystick inputs. It determines the direction and speed of implement cylinders and motors in proportion to joystick and travel pedal movement. When this valve wears out, your machine loses precision, power, and responsiveness.

• Direct replacement for CAT 306, 307, and 308C series – Specifically engineered for Caterpillar 306, 306E, 306E2, 307, 307C, 307D, 307E, and 308C mini excavators, as well as 305.5/305.5E/305.5E2 models. Also fits the 308C CR variant. Mounting flange, port configurations, and bolt patterns match the original Caterpillar specifications exactly – no modifications, no adapters.

• Advanced flow‑sharing logic for smooth multi‑function operation – CAT‘s original distributors utilize specific load‑sensing spool tolerances that allow you to track straight while simultaneously hoisting the boom and curling the bucket. The main control valve contains spools, check valves, relief valves, and orifices that enable both single and combined operations to be performed simultaneously. This delivers the smooth, predictable machine response that CAT mini excavators are known for.

• Integrated anti‑drift valves for load holding – Original units feature integrated boom and stick anti‑drift valves that prevent your front attachments from slowly sinking or creeping downward when holding a heavy load in the air. This is essential for safety and precision in grading and lifting operations.

• Factory‑calibrated pressure relief for system protection – The internal main relief valves and port relief valves are factory‑calibrated to the exact specifications of the CAT machine, typically around 24.5 to 28 MPa. This protects your cylinders, hoses, and other hydraulic components from catastrophic over‑pressurization.

• Restored 5–7 ton class hydraulic performance – After remanufacturing, this valve delivers the full rated flow and pressure your CAT mini excavator was designed for. Your machine regains smooth, precise control, fast cycle times, and consistent attachment power – eliminating the sluggish, jerky, or unpredictable performance caused by internal wear and leakage.

• Superior durability and contamination resistance – Utilizes high‑strength alloy materials and precision‑machined spools and sleeves with tolerances measured in microns to ensure minimal internal leakage and maximum control precision. Premium seals and O‑rings are installed to withstand extreme pressures and temperatures.

• Direct bolt‑on replacement – Mounting flange, port configurations, and bolt patterns are restored to original Caterpillar specifications. No modifications, no adapters – your mechanic unbolts the old valve and bolts this one in.

• Pre‑shipment visual verification – Before packing, we send you detailed high‑resolution photographs of the actual unit (mounting surfaces, port threads, castings, overall condition). You approve shipment – we never ship blind.

• Fast delivery – 5–8 working days lead time from our Guangzhou warehouse. Monthly supply capacity of 300 units, available for single‑piece or bulk orders.

2. Applications

The remanufactured CAT 269-5956 main control valve is the hydraulic command centre for 5–7 ton class mini excavators used across a wide range of job sites:

• Urban construction & utilities – Sidewalk repairs, water and gas line trenching, fibre‑optic cable installation, and small‑scale demolition in tight access spaces. The valve‘s advanced flow‑sharing logic provides smooth, predictable response for delicate digging near existing structures while the factory‑calibrated relief system delivers enough power for breaking compacted surfaces. The pilot hydraulic controls ensure precise joystick response for fine attachment control.

• Residential landscaping & pool excavation – Pool digs, retaining walls, grading, and drainage work. The valve’s smooth, jerk‑free operation and precise metering characteristics allow operators to work efficiently in confined residential spaces without damaging surrounding structures. The anti‑drift valves prevent the boom and stick from slowly sinking when holding heavy loads, ensuring safety and precision.

• Road & bridge maintenance – Shoulder repairs, guardrail replacement, and drainage cleaning. The valve‘s consistent flow delivery allows operators to position attachments precisely for roadside work, even in tight work zones with limited space. The main control valve works in conjunction with the blade control valve to enable dozing, backfilling, and site cleanup operations.

• Equipment rental fleet – 5–7 ton mini excavators are among the most frequently rented machines. A remanufactured main control valve offers predictable performance at a cost that makes proactive replacement financially sensible – avoiding costly mid‑rental failures, towing bills, and customer complaints.

• Forestry & vegetation clearance – Steep slopes, fallen timber, and uneven terrain demand reliable hydraulic control. The valve‘s consistent pressure and flow output maintain stable power for saws, grapples, and mulchers. The twin‑pump system ensures sufficient flow for attachment operation even during simultaneous travel and implement movements.

• Agriculture & land management – Drainage ditch cleaning, irrigation trenching, pond maintenance, and land preparation. The valve’s reliable control ensures consistent attachment performance in muddy or uneven field conditions.

3. Maintenance Tips – Extend the Life of Your Main Control Valve

A properly maintained main control valve is essential for the precision, power, and longevity of your CAT mini excavator‘s hydraulic system. Follow these tips to protect your investment:

• Maintain hydraulic oil cleanliness – Contaminated oil is the #1 killer of hydraulic control valves. The internal spools have tolerances measured in microns – even a tiny grain of sand can score a spool or sleeve, causing internal leakage and loss of control precision. Use genuine or high‑quality filters and change them at Caterpillar‑recommended intervals. Before any major component exchange or after a component failure, flush the hydraulic system properly to remove contamination.

• Change hydraulic oil and filters on schedule – Follow Caterpillar‘s recommended service intervals for hydraulic oil and filter changes. The main control valve relies on clean oil for proper spool operation and seal integrity. Contaminated oil degrades seals and causes internal wear that cannot be repaired – only replaced.

• Inspect all O‑ring seals during service – Carefully inspect all O‑ring seals when servicing the hydraulic system. Replace any O‑ring seals that are worn, cracked, or damaged. A leaking seal can allow contamination ingress or cause pressure loss that affects machine performance.

• Keep the control valve exterior clean – Before any disassembly or service work, thoroughly clean the exterior of the main control valve to prevent dirt from entering the internal mechanism. The precision components in the hydraulic system can be damaged by contaminants or dirt.

• Plug all ports when disconnected – When disconnecting hydraulic lines or removing the control valve, always plug or cap all ports, lines, fittings, and hoses. This prevents contaminants from entering the system and causing damage to the valve‘s precision‑ground spools and sleeves.

• Label all lines before disconnection – Before disconnecting a single hydraulic hose, tag and label it precisely. A misrouted pilot line can cause functions to reverse or operate dangerously. All components must be installed in their original locations and orientations.

• Check relief valve settings periodically – Verify that main relief and port relief pressures are set to Caterpillar factory specifications. Incorrect relief settings can cause poor performance or catastrophic component failure.

• Listen for unusual noises or feel for jerky operation – Whining, clicking, or jerky implement response often indicates internal valve wear or contamination. Investigate immediately – continued operation will cause further damage to spools, sleeves, and seals.

• Keep all internal parts clean and lubricated during assembly – When servicing the valve, keep all internal parts clean and properly lubricated. All disassembly procedures must be performed on a clean work surface, and all internal components should be cleaned with clean solvent and dried with compressed air.

• Store spare valves properly – Keep remanufactured control valves in their original wooden case, in a dry, clean environment. Keep ports capped to prevent contamination ingress.

Critical installation tip for the 269‑5956 main control valve:
– Hydraulic system cleanliness is critical. Before installing the remanufactured valve, flush the entire hydraulic system and replace all filters. Contaminants from a failed valve will destroy a remanufactured unit just as quickly as a new one.
– Pilot pressure must be checked – The pilot hydraulic system provides oil to the control circuits. Low pilot pressure will prevent main control valve spool shifting. Ensure pilot pressure is within Caterpillar factory specifications before connecting the new valve.
– Label every line before disconnection – A misrouted pilot line can cause functions to reverse or operate dangerously.
– Use new O‑rings and sealing washers on every hydraulic connection. Reused seals guarantee leaks.
– Bleed air from the system – After installation, run the engine at low idle for 2‑3 minutes, then slowly cycle each function (boom, arm, bucket, swing, travel) to purge air from the circuit.
– Check all relief valve settings – Verify main relief and port relief pressures are set to Caterpillar factory specifications (typically 24.5 to 28 MPa).

Warranty note: Warranty period is 3 to 6 months depending on product details. We do not provide warranty service for original used or remanufactured parts. Our value is delivered up front: careful remanufacturing, thorough testing, and pre‑shipment visual verification. For customers who require a warranty‑covered option, we can quote new aftermarket units – ask our sales team.

The main control valve is the brain of your CAT 306, 307, or 308C’s hydraulic system. When internal seals degrade or spools wear, your mini excavator loses precision, power, and productivity. Our remanufactured 269-5956 gives you restored 5–7 ton class control and performance at a cost that keeps your budget intact – not with shortcuts, but with genuine factory‑grade restoration. Send us your machine serial number – we will confirm compatibility and provide a quote within 24 hours.
