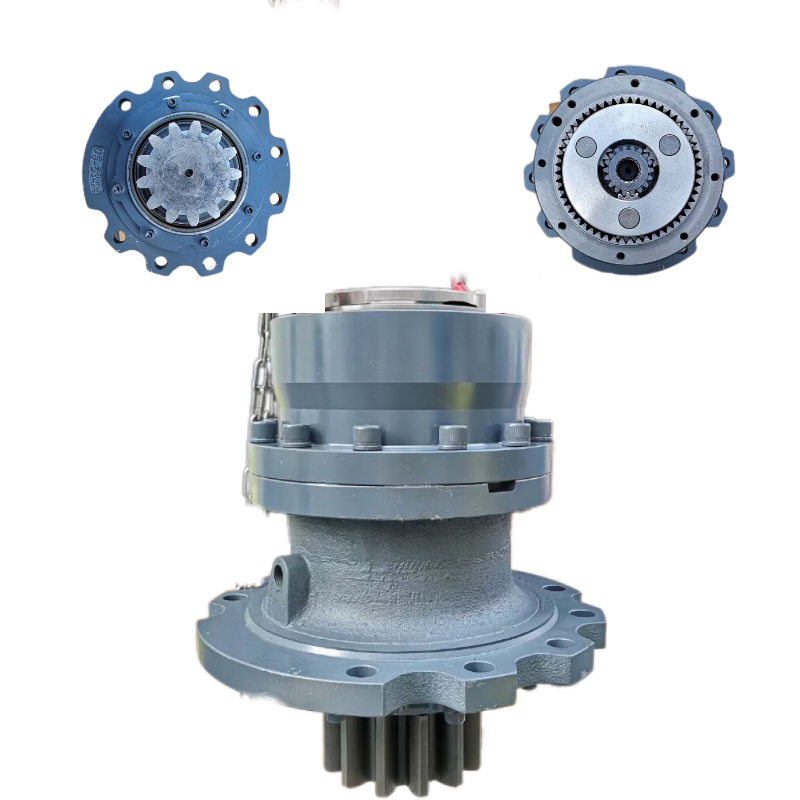

Hitachi EX120-2 Swing Drive Gearbox – Specification

Description

Detail Information

Note: The application information provided is for reference only. Please confirm the part number and compare it with the old component before purchasing. If you have any questions, please feel free to contact us.
It is worth choosing a product that features stable performance, high reliability, easy installation, and quick response.

1. Key Features & Benefits

• Genuine OEM-spec swing drive gearbox – Engineered to Hitachi’s original equipment specifications for the EX120-2 and compatible 12-ton class excavators. This is a brand‑new, factory‑spec unit – not remanufactured, not a generic substitute.

• Critical component for 360° upper structure rotation – The swing drive, also known as the swing gearbox or swing reduction gearbox, is the power transmission component that allows the excavator to rotate on its base. It transfers power from the swing motor through a multi‑stage planetary gear reduction to the swing bearing, enabling the machine to dig and move material from different angles. When this gearbox fails, the machine cannot position itself for efficient digging.

• Direct replacement for Hitachi EX120-2 and compatible models – Specifically designed for Hitachi EX120-2, EX120-1, EX120-3, EX120-5, EX120-6, and EX160-1 excavators. Mounting flange, shaft interface, and bolt patterns match the original Hitachi specifications exactly – no modifications, no adapters.

• Multi‑stage planetary reduction design – The swing drive uses a precision planetary gear train (sun gear, planet gears, ring gear) to achieve the high reduction ratio required for excavator swing applications. This compact planetary design delivers smooth, consistent torque transfer with minimal backlash.

• Robust construction for demanding conditions – Built with high‑strength materials and precision‑machined components to withstand the extreme shock loads, vibration, and torsional stress generated during swing operations. Premium seals prevent contamination ingress and oil leakage, extending service life.

• Precision‑engineered for reliable performance – Meticulously engineered to meet and exceed the specifications of the Hitachi EX120 excavator, ensuring compatible and reliable performance. Every gear is precision‑machined for optimal meshing and power transfer.

• Factory-sealed and lubricated – The swing drive is sealed and filled with the correct lubricant at the factory. Premium seals prevent contamination ingress and oil leakage.

• Pre-shipment visual verification – Before packing, we send you detailed high‑resolution photographs of the actual unit (mounting flange, splines, port threads, castings, overall condition). You approve shipment – we never ship blind.

• Fast delivery – 5–8 working days lead time from our Guangzhou warehouse. Monthly supply capacity of 300 units, available for single‑piece or bulk orders.

2. Applications

The genuine Hitachi EX120-2 swing drive gearbox is the power transmission component for the swing system on 12‑ton class excavators used across a wide range of job sites:

• Urban construction & utilities – Sidewalk repairs, water and gas line trenching, and small‑scale demolition in tight access spaces. The swing drive provides the torque and smooth rotation needed for precise positioning of the upper structure, allowing operators to work near existing structures without overswinging.

• Residential & commercial development – Foundation digging, basement excavation, retaining walls, grading, and site preparation. The smooth rotation and precise control enable operators to place materials accurately and work efficiently in confined spaces.

• Road & bridge maintenance – Shoulder repairs, guardrail replacement, and drainage cleaning. The swing drive’s consistent torque delivery allows operators to position the cab and attachments precisely for roadside work, even in tight work zones with limited space.

• Equipment rental fleet – 12‑ton excavators are frequently rented machines. A genuine new swing drive provides predictable service life and eliminates the gamble of remanufactured or used units – avoiding costly mid‑rental failures, towing bills, and customer complaints. The swing drive is a high‑wear component on rental machines due to constant rotation and varying operator habits.

• Forestry & vegetation clearance – Steep slopes, fallen timber, and uneven terrain demand reliable swing performance. The swing drive’s robust construction and sealed bearings withstand the dirt, moisture, and debris common in forestry applications.

• Agriculture & land management – Drainage ditch cleaning, irrigation trenching, pond maintenance, and land preparation. The swing drive’s consistent power delivery ensures reliable slewing performance even in muddy or uneven field conditions.

3. Why Choose Hongtengda Parts

Since 2001, Hongtengda Parts has been a leading distributor of earthmoving machinery parts, serving customers across Southeast Asia, the Middle East, Africa, the Americas, and Oceania. Headquartered in Guangzhou’s Zhucun parts hub – one of Asia’s major distribution centres for construction machinery parts – we combine deep inventory, cross‑brand knowledge, and reliable global shipping to keep your machines running.

What you get when you order from us:

• 25 years of heavy equipment parts experience – Since 2001, we have been the go‑to supplier for repair shops, fleet owners, and wholesalers worldwide. We know the Hitachi EX120-2 platform inside out – the different engine variants, hydraulic systems, and production changes over the years.

• 90% of our catalog in stock – Your swing drive sits in our Guangzhou warehouse, not in a supplier’s backlog. From hydraulic components to undercarriage kits, most orders are dispatched within 24 hours on fumigated, export‑ready pallets.

• One supplier, all parts – Got a serial number, a model code, or just a photo of a worn‑out part? Our specialists cross‑reference across Hitachi, Caterpillar, Komatsu, and 15+ brands to find what you need. OEM, OEM‑quality, or hard‑to‑find older model parts – we handle the search so you don’t have to.

• Own maintenance factory and technical team – Equipped with our own maintenance factory and a team of experienced technicians, we provide global customers with one‑stop solutions covering parts supply, technical support, and equipment maintenance.

• Pre‑shipment verification – We never ship a swing drive blind. You receive clear photos of the actual unit before packing – you approve, we ship. When downtime costs money, we move at your speed.

• Cost‑effective alternative to new OEM – Genuine OEM‑spec swing drives deliver the same performance as new Hitachi components while priced competitively. This makes proactive replacement financially accessible for fleet owners and repair shops alike.

• After‑sales support that works – Three senior technicians review your case together. If it’s a quality issue – we cover it. If not – we still guide you through the fix. We don’t just sell parts; we keep you running.

Send us your Hitachi EX120-2 machine serial number and a photo of the old swing drive – we will confirm compatibility and provide a quote within 24 hours.
