Volvo describes the cooling philosophy on its current L150 loader in one sentence worth quoting, because it explains what this motor has to do: the hydraulically driven cooling fan regulates component temperature and can be automatically reversed to permit self-cleaning of the cooling units. The E-series machines behind this part use the same architecture, and the motor is the component that converts hydraulic flow into that airflow.
适用性

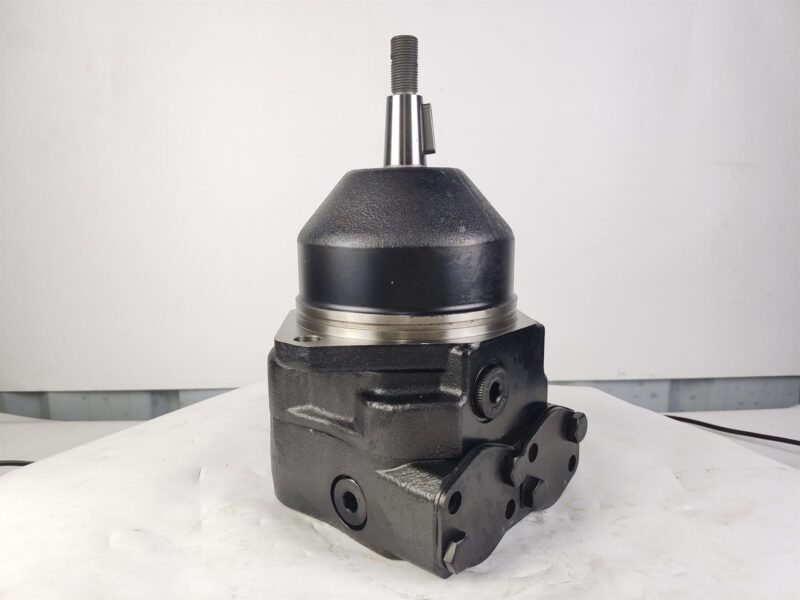

Volvo L150E, L150F, L150G, L150H, L180E, L180F, L180F HL, L180G, L180G HL, L180H, L180H HL, L220E, L220F, L220G, L220H, L250G and L250H wheel loaders, listed in dealer and trade parts data as a hydraulic fan motor. The HL suffix identifies high-lift configurations and does not change the cooling circuit.
Why a loader fan motor is a hard life component
A wheel loader works in short cycles with long idling periods, which is the worst combination for a cooling system: heat is still being generated while airflow demand from vehicle movement has disappeared. Add dust from aggregate, demolition waste or topsoil and the core face blocks faster than most operators clean it. Volvo’s answer on current machines is a fan that reverses on a schedule, which is exactly the duty that wears a motor’s seals and internal clearances.
Test in order: clean the cores and re-measure, then confirm the fan accelerates under thermal demand, then measure flow at the motor ports, then check case drain volume. Our 液压风扇马达诊断指南 covers the sequence, and coolant temperature sensor testing rules out the false signal.
安装与订购
Match shaft, flange, port positions and drain routing against the removed motor, photograph the hose layout first, flush and change the filter element, prime before cranking, keep the case drain unrestricted, and target ISO 4406 18/16/13. Minimum order one piece. Three to six month warranty on new aftermarket units as stated on your proforma invoice; bench checked and photographed before the wooden case closes, delivery 5 to 8 working days from payment subject to stock. the range sits under Volvo hydraulic fan motor.
