| 결제 조건: T/T, XT, PayPal, 웨스턴 유니온 | 공급 용량: 월 500개 | 적용 가능한 산업: 기계 수리점, 소매업, 건설업, 에너지, 광업 |
| 카테고리: 캡 어셈블리 | 신청: Komatsu 토공 장비 굴삭기용 | 하이라이트: 굴삭기 교체 부품, 굴삭기 캡 구성품 |
| 배송: 해상 운송 / 항공 운송 |
참고: 제공된 적용 정보는 참고용입니다. 구매 전에 부품 번호를 확인하고 기존 부품과 비교하시기 바랍니다. 문의사항이 있으시면 언제든지 연락해 주십시오. 문의하기.
안정적인 성능, 높은 신뢰성, 간편한 설치 및 신속한 대응을 특징으로 하는 이 제품을 선택하시는 것이 좋습니다.

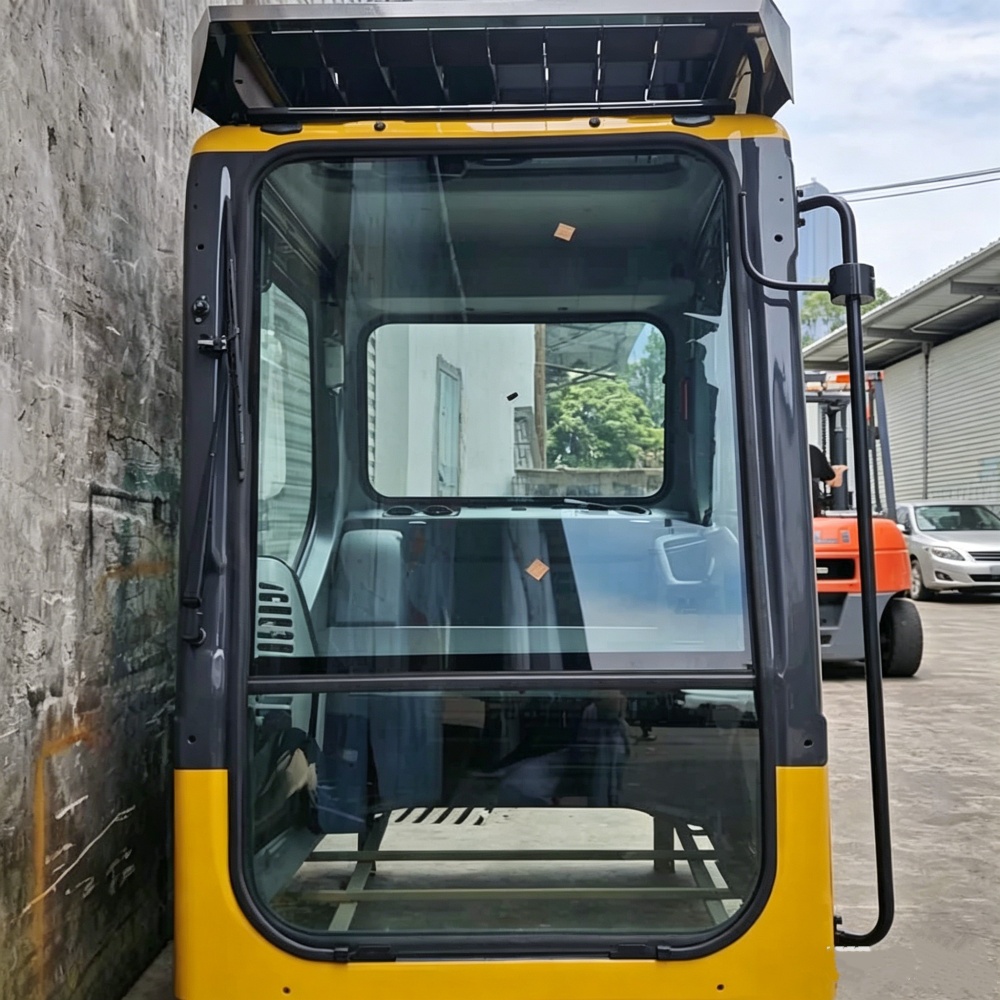

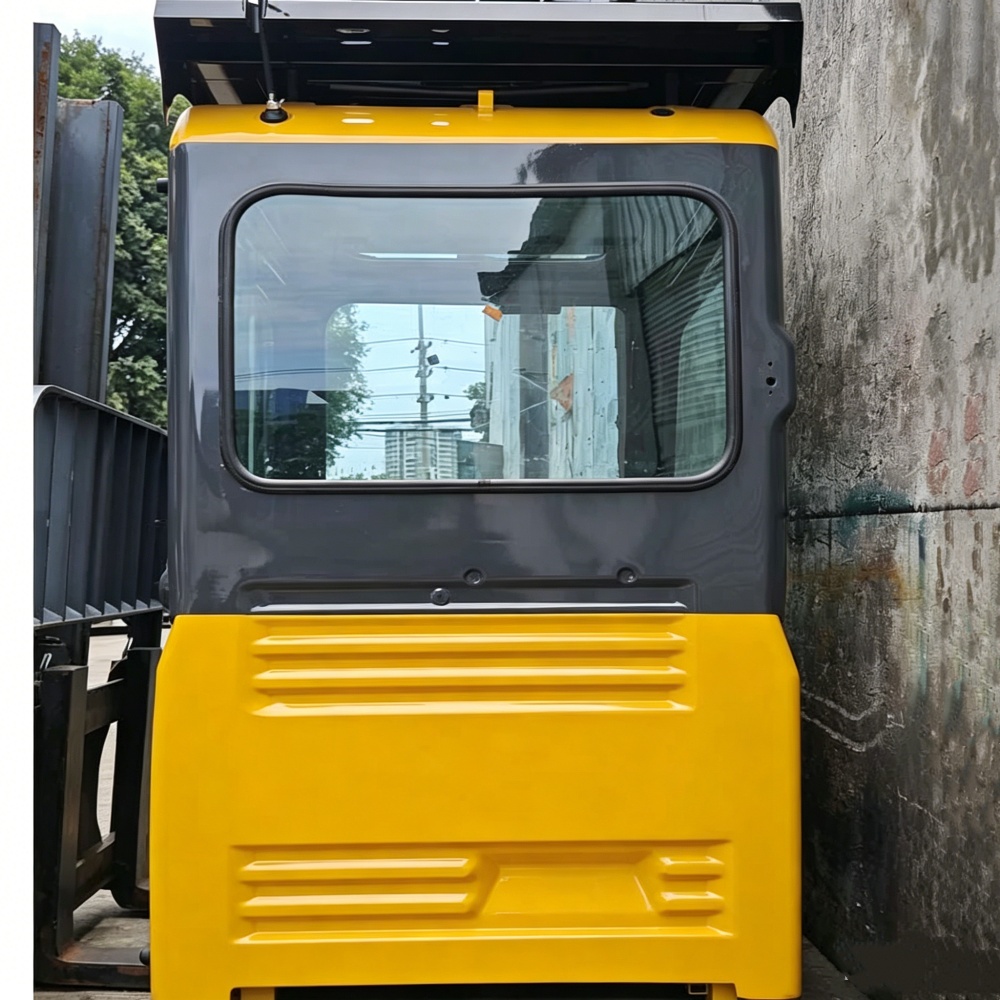

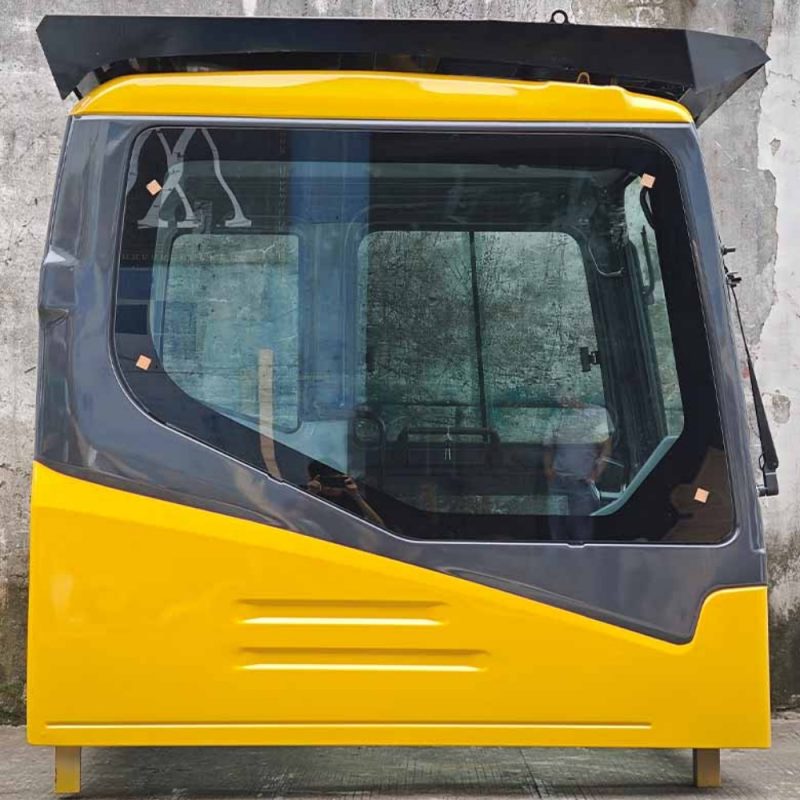

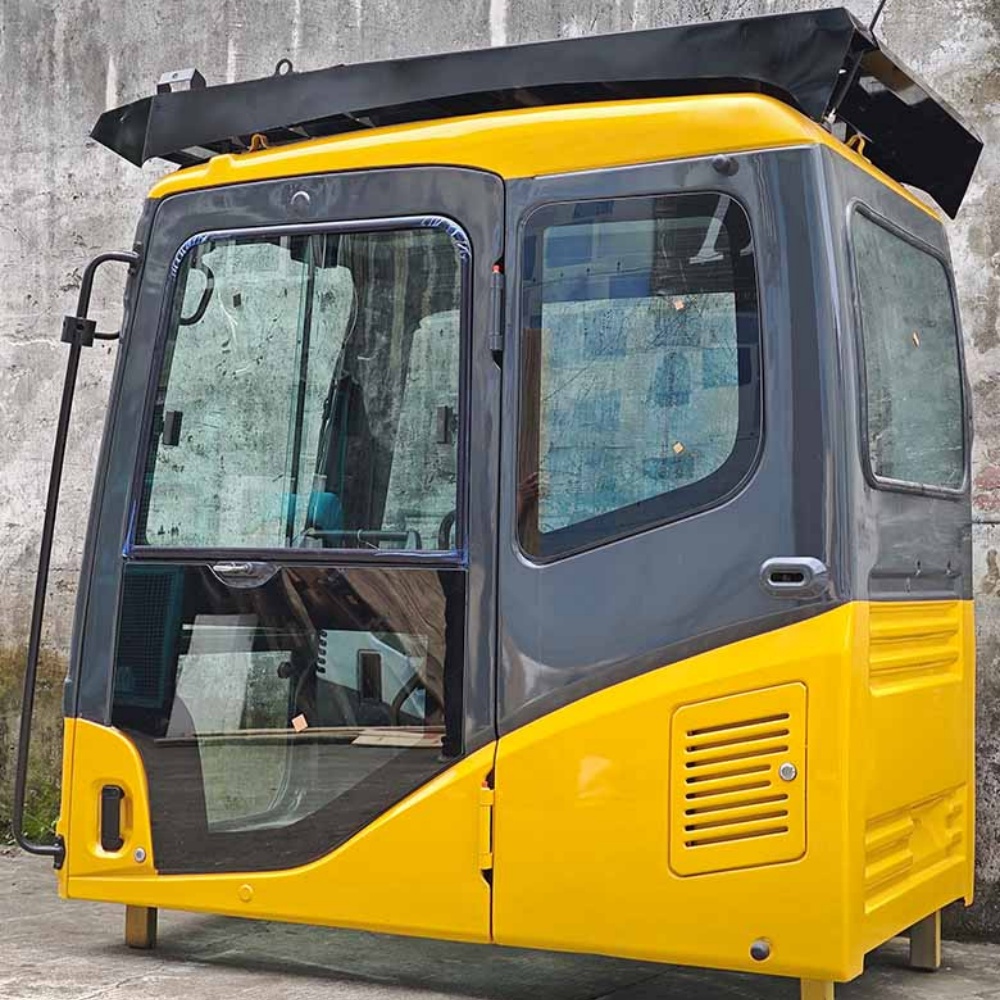

Komatsu PC200-7 캡 어셈블리 – Komatsu 굴삭기용 교체 캡
1. New vs. Used/Refurbished Cab – What You’re Really Paying For
PC200-7 is a workhorse. Many owners are tempted by a used or “refurbished” cab to save money upfront. But after supporting hundreds of PC200-7 replacements, we’ve seen the same pattern repeat. Here is the real comparison.
| Factor | Used Cab (10+ years old) | Refurbished Cab (painted & sealed) | Hongtengda New PC200-7 Cab |
|---|---|---|---|
| Typical price (relative to new) | 30–40% | 50–65% | 100% (baseline) |
| Hidden rust | Almost certain around roof gutters and floor pan | May be hidden under fresh paint | None – virgin steel |
| Door sag | Common – hinges worn | May be “adjusted” but not replaced | New hinges, jig-aligned |
| Seal condition | Dry, cracked, leaking | Often re-used old seals | Brand new double seals |
| Glass condition | Pitted, scratched, or chipped | May keep original glass | New tempered glass |
| Installation time | 2–3 days (fixing surprises) | 1–2 days | 4–6 hours (bolt-on) |
| 12‑month repair probability | >60% (rust repair, reseal, door fix) | ~30% | <5% |
| 2‑year total cost (price + repairs) | 70–90% of new | 80–95% of new | 100% of new (no extra) |
결론: A used cab is a gamble. A refurbished cab often just delays the problems. A new cab costs more today but saves you downtime and frustration over 2–3 years.
2. The Three Hidden Costs of “Refurbished” Cabs – From Real Customer Stories
We have replaced many “refurbished” cabs that failed within months. Here are the most common complaints we hear:
| 문제 | Customer Story | Why It Happens |
|---|---|---|
| Water leak from roof | “After first rain, operator got wet. Found rust hole under the new paint.” | Refurbisher sanded and painted over corroded metal instead of cutting it out. |
| Door won’t latch properly | “We have to slam it hard. Sometimes it pops open during work.” | Hinge pins are worn, but refurbisher only changed the weatherstrip. |
| Electrical gremlins | “Wipers work sometimes. Interior light flickers.” | Wiring harness was cut and poorly spliced; no new grommets. |
Our PC200-7 cab eliminates all of these: fresh steel, new hinges, new seals, pre‑drilled grommets for harness.
3. PC200-7 Specific Improvements – What We Changed from Original
PC200-7 original cabs had a few weak points. We studied them and made small but important upgrades:
| Original Weakness | 당사의 개선 사항 | 이점 |
|---|---|---|
| Floor pan rust near pedal area | Additional 1.5mm reinforcing plate + drain slot | Water drains away, no pooling |
| 지붕 배수로 이음매 | Seam welded and sealed with PU sealer (not just paint) | No capillary water ingress |
| Door mirror mount bracket | Two additional threaded inserts | Firm mounting for heavy aftermarket mirrors |
| Harness entry point | Larger rubber grommet (25mm vs 18mm) | Easier to route additional cables (cameras, lights) |
These are not visible in photos, but they matter to mechanics and operators.
4. Installation: What Your Mechanic Will Love (or Hate)
| Task | Cheap/Used Cab | Our PC200-7 Cab |
|---|---|---|
| Finding bolt holes | “Close enough” – use a pry bar to align | Holes exactly match – use fingers to start bolts |
| Transferring old parts (seat, AC, dashboard) | Holes may be stripped or missing | All threaded holes are clean and re‑tapped |
| Adjusting doors | Requires shims, sometimes welding | Doors align from factory – check with feeler gauge |
| Sealing chassis gap | No pre‑cut foam strip | Pre‑cut foam seal included |
Your mechanic will thank you – or at least not curse your name.
5. Quick Specifications & Ordering
| 항목 | 세부 사항 |
|---|---|
| Compatible with | Komatsu PC200-7 (also PC200-8? No – different mounting, ask us) |
| What’s included | Shell, roof, floor pan, all glass (windshield + side + rear), door shells, hinge kit, bolt kit, foam seal strip |
| What’s not included | Seat, dashboard, AC unit, wiper motor, interior trim, wiring harness |
| MOQ | 1개 |
| 리드 타임 | 6~8영업일 |
| 포장 | Wooden case (ISPM15, fumigation-free) |
| 결제 | T/T, XTransfer, PayPal, Western Union |
| 공급 능력 | 월 500개 |
| 보증 | 6 months (structural welds, glass defects, paint adhesion) |
6. Pre‑Shipment Verification – You Approve Before We Ship
We never blind‑ship a cab. After production, you receive:
-
Door alignment video (close/open, gap check with a card)
-
Water spray test (windshield and side windows)
-
Paint thickness readings (roof, door, rear panel)
-
Mounting bracket photos (with ruler for scale)
You say “OK to ship” – only then we pack.
Ready to replace your PC200-7 cab? Send us:
-
Machine serial number (starts with PC200-7…)
-
4 photos: front, left side, roof top, floor pan (if accessible)
