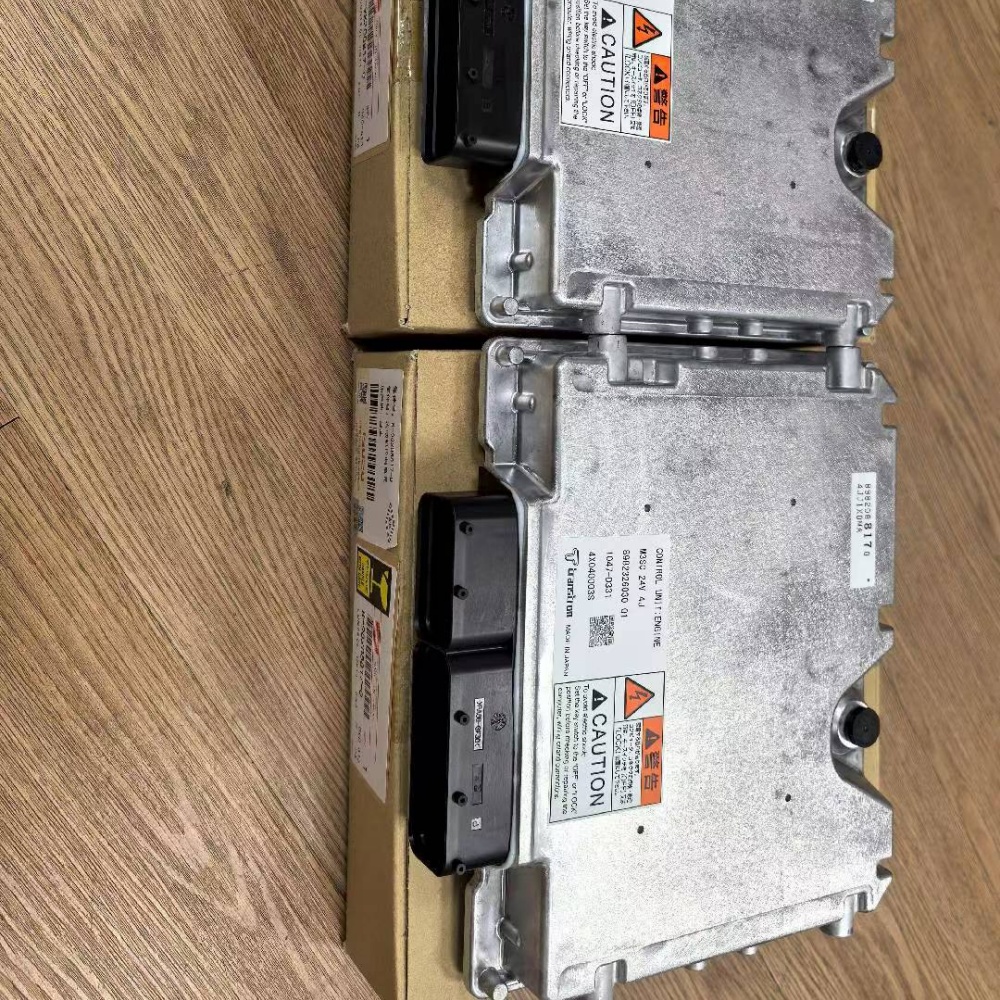

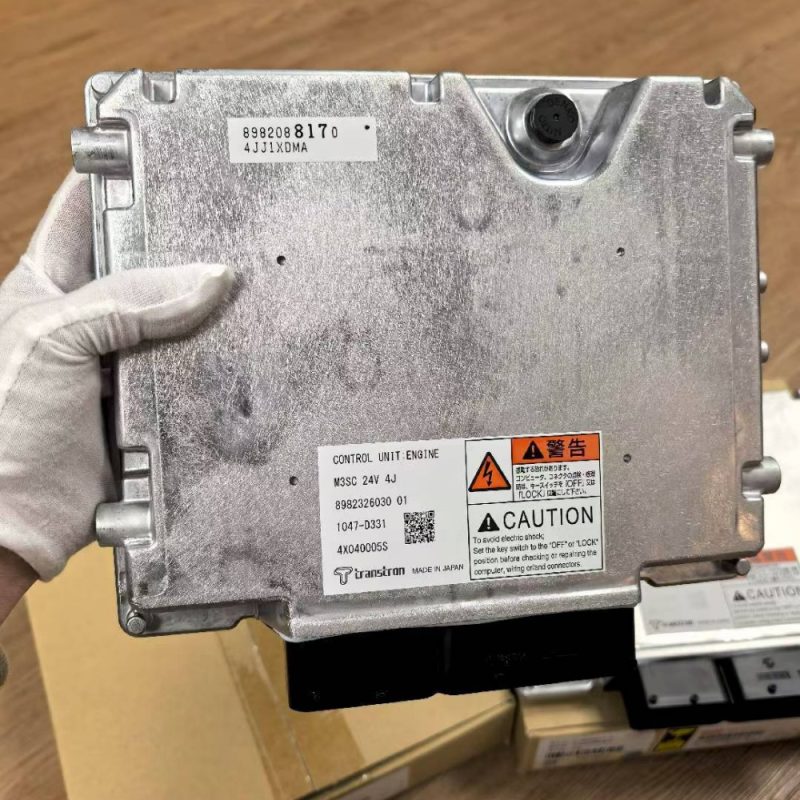

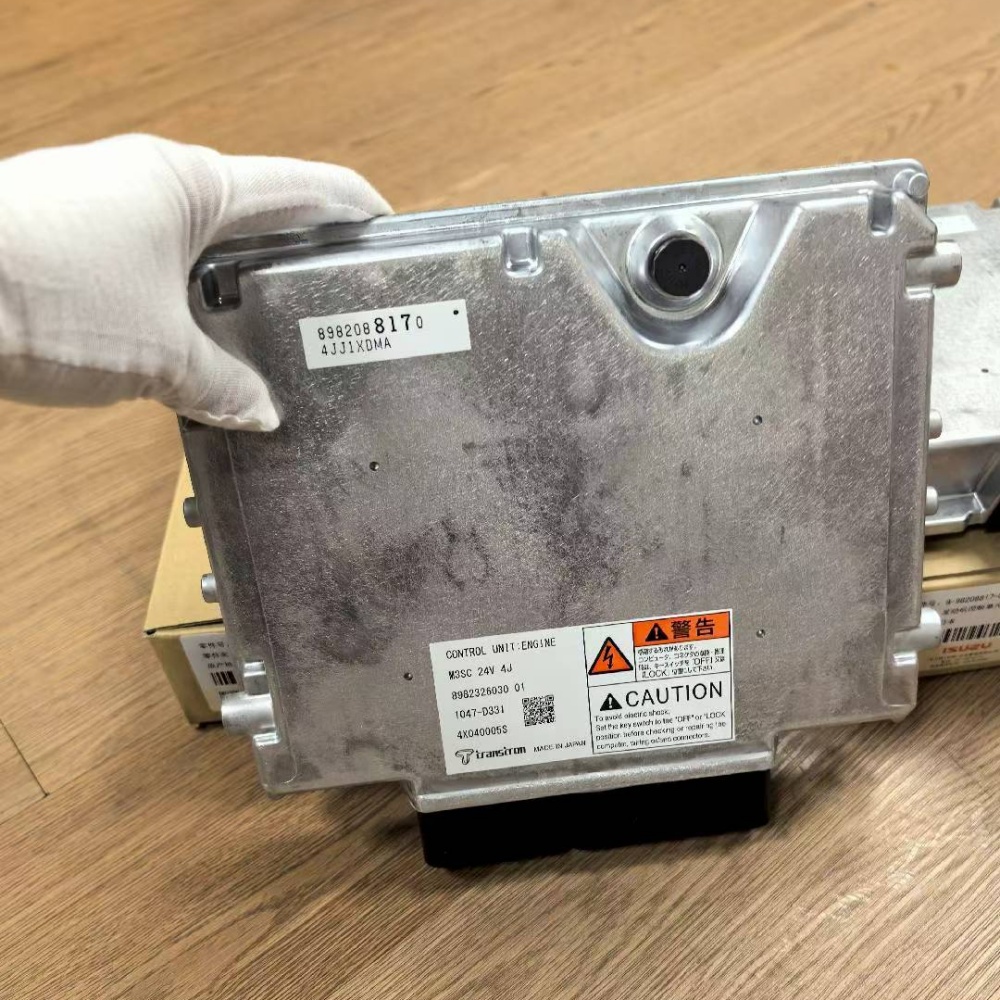

Isuzu 4JJ1 Engine Control Unit (ECU) – with DBF Program for Hitachi ZAX130-5B / Sumitomo SH130-6

Description

Detail Information

1. Key Features & Benefits

• Genuine Isuzu OEM engine control unit – Part number 8-98232-6030. Manufactured to Isuzu‘s original equipment specifications for the 4JJ1 engine, as used in Hitachi ZAX130-5B, Sumitomo SH130-6, and compatible excavator models. This is a brand‑new, factory‑spec ECU – not a generic aftermarket substitute, not a reconditioned unit.

• The electronic brain of your 4JJ1 engine – The Engine Control Unit (ECU) is the central processor that manages all engine functions. It receives input signals from sensors throughout the engine (crankshaft position, camshaft position, boost pressure, intake air temperature, coolant temperature, fuel pressure, and more), processes this data, and sends precise output commands to control fuel injection timing, injection quantity, common rail pressure, and emissions systems.

• Equipped with DBF program for emissions compliance – This ECU comes pre‑loaded with the DBF (Diesel Particulate Filter) program, specifically calibrated for the 4JJ1 engine’s after‑treatment system. The DBF program manages the regeneration cycle of the diesel particulate filter, ensuring the engine meets emissions standards while maintaining optimal fuel efficiency and performance. This is the correct ECU for machines requiring DBF emissions compliance.

• Precise common rail fuel control – The ECU enables high‑pressure injection from low engine speeds, optimizing combustion to minimize particulate matter and NOx emissions. The 4JJ1 engine uses an Electronic Diesel Control, Common Rail system that relies on the ECU for millisecond‑level precise fuel control. This delivers the responsive power and fuel efficiency that Hitachi and Sumitomo excavator operators expect.

• Real‑time engine monitoring and diagnostics – The ECU continuously monitors engine sensors and records fault codes when issues are detected. It provides a 5‑volt reference voltage to sensors including the manifold absolute pressure (MAP) sensor, accelerator pedal position sensor, and others. When a fault occurs, the ECU illuminates the warning light on the monitor and stores diagnostic trouble codes (DTCs) for rapid troubleshooting.

• 24V DC operation for excavator applications – This ECU is designed for 24V DC electrical systems, matching the standard voltage of Hitachi ZAX130-5B and Sumitomo SH130-6 excavators. It is built to withstand the harsh operating conditions of construction and mining equipment.

• Direct plug‑and‑play replacement – The ECU is a direct replacement for the original Isuzu unit on the 4JJ1 engine. It connects to the existing wiring harness with standard connectors – no modifications, no adapters. Simple unbolt‑and‑replace installation.

• Pre‑shipment visual verification – Before packing, we send you detailed high‑resolution photographs of the actual unit (connectors, part number markings, overall condition). You approve shipment – we never ship blind. Video inspection is also available upon request.

• Fast delivery – 5–7 working days lead time from our Guangzhou warehouse. Flexible shipping options including DHL, TNT, UPS, FedEx, and sea freight.

2. Applications

The Isuzu 4JJ1 ECU (8-98232-6030) is the engine control brain for 13‑ton class excavators equipped with the 4JJ1 engine, used across a wide range of demanding job sites:

• Heavy construction & earthmoving – The ZAX130-5B is powered by the Isuzu AM-4JJ1X engine delivering 73.4 kW at 2,000 rpm. The SH130-6 uses the Isuzu GJ-4JJ1X engine delivering 70.9 kW at 2,000 rpm. The ECU ensures these engines deliver consistent power for excavation, grading, and loading operations while maintaining fuel efficiency and emissions compliance through the DBF program.

• Urban construction & utilities – Sidewalk repairs, water and gas line trenching, and small‑scale demolition in tight spaces require precise, predictable engine response. The ECU‘s common rail fuel control provides smooth, progressive power delivery for delicate work near existing structures.

• Quarrying & aggregates – Loading trucks and material handling in abrasive dust conditions demand reliable engine performance. The ECU’s real‑time monitoring and diagnostics ensure the engine operates within safe parameters even under heavy loads.

• Equipment rental fleet – 13‑ton excavators are frequently rented machines. A genuine new ECU provides predictable performance and eliminates the risk of electronic failure – avoiding costly mid‑rental breakdowns and customer complaints.

• Forestry & vegetation clearance – Steep slopes, fallen timber, and uneven terrain place variable loads on the engine. The ECU continuously adjusts fuel delivery to maintain consistent power for saws, grapples, and mulchers.

• Aftertreatment system maintenance – For machines requiring DBF emissions compliance, a correctly calibrated ECU is essential. This ECU comes pre‑loaded with the DBF program, ensuring the diesel particulate filter regeneration cycle operates correctly and the machine meets emissions standards.

3. FAQ – Frequently Asked Questions

Q1: Is this ECU an exact replacement for my Hitachi ZAX130-5B or Sumitomo SH130-6?

A: Yes. The 8-98232-6030 is the genuine Isuzu ECU for the 4JJ1 engine as used in Hitachi ZAX130-5B, ZAX130-5A, Sumitomo SH130-6, and compatible excavator models. It is specifically calibrated with the DBF program for emissions compliance. To confirm compatibility for your specific machine, send us your machine serial number and a photo of the old ECU – we will verify within 2 hours.

Q2: What does the DBF program do?

A: DBF stands for Diesel Particulate Filter. This ECU is pre‑loaded with the DBF program that manages the regeneration cycle of the diesel particulate filter. The program monitors exhaust temperature and pressure differential across the DPF, and initiates regeneration when the filter becomes loaded with soot. This ensures the engine meets emissions standards while maintaining optimal fuel efficiency and performance.

Q3: What are the symptoms of a failing ECU?

A: Common symptoms include: engine cranks but does not start, hard starting (engine cranks OK but takes a long time to start), intermittent power loss, erratic idle, poor fuel economy, or check engine light illumination with stored fault codes. If you experience any of these issues, have your machine diagnosed by a technician – a faulty ECU is often the cause.

Q4: Is this a new ECU or a remanufactured unit?

A: It is brand new / genuine original, not remanufactured. All internal components are new. The ECU is manufactured to Isuzu‘s original specifications and comes pre‑programmed with the correct DBF calibration for the 4JJ1 engine.

Q5: Do I need to program this ECU after installation?

A: The ECU comes pre‑programmed with the correct DBF calibration for the 4JJ1 engine. In most cases, it is plug‑and‑play – your mechanic unbolts the old ECU and installs this one. However, some machines may require a software update or calibration to match the specific machine configuration. We recommend consulting your machine’s service manual or contacting our technical support team for guidance.

Q6: What is the warranty on this ECU?

A: The warranty period is 3 to 6 months depending on product details. We do not provide warranty service for genuine original parts. Our value is delivered up front: genuine Isuzu components, new‑condition ECU, and pre‑shipment visual verification. For customers who require a warranty‑covered option, we can quote aftermarket alternatives – ask our sales team.

Q7: How long does delivery take?

A: Delivery is 5–7 working days after order confirmation. Flexible shipping options including DHL, TNT, UPS, FedEx, and sea freight are available.

Q8: What payment methods do you accept?

A: We accept T/T (wire transfer), Western Union, and PayPal.

Q9: How can I verify the ECU is genuine before shipping?

A: Before packing, we send you clear, high‑resolution photographs of the actual unit – connectors, part number markings, and overall condition. You approve shipment only after reviewing these images. We never ship blind. Video inspection is also available upon request.

Still have questions? Contact Hongtengda Parts – we reply within 24 hours.
